High reflection loss APC Telecommunication fiber optic for Premise Installations

Place of Origin : China Mainland

Brand Name : TTI

Certification : ROHS, SGS

Model Number : FPC-MPO

MOQ : Negotiable

Price : Negotiable

Packaging Details : 1pcs/PE bag

Delivery Time : in 2-4 days

Payment Terms : T/T, , ESCROW, PayPal, Monthly settlement

Supply Ability : 7000pcs/Day

Contact Now

High reflection loss APC Telecommunication fiber optic for Premise Installations

Quick Details:

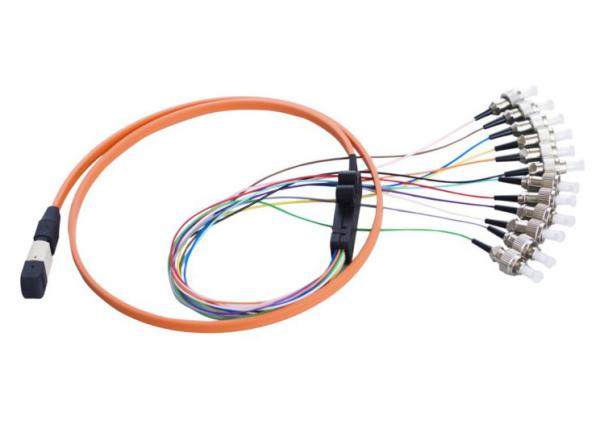

  1. Name: MPO - FC fiber patch cord
  2. Ferrule End-face: PC, UPC, APC
  3. Mode: OS1, OS2, OM1, OM2, OM3, OM4
  4. Cable Jacket: LSZH, OFNR, OFNP
  5. Cable Type: Ribbon fiber optic cable, Flat and Round
  6. Cable core: 12core, 24core optional

Features:

  1. High reflection loss with APC
  2. Comply with Telcordia GR-1435-CORE specification and Rosh standard
  3. High fiber density (maximum 24 fibers for Multimode)
  4. Single mode and Multimode (Flat/Round) available
  5. Fiber in single connector: 4, 8, 12 24
  6. Insert/Pull latching connector

Applications:

  1. Premise Installations
  2. FTTH , CATV, LAN, MAN, WAN, Test &Measuremen
  3. Telecommunication and Data processing Networks
  4. Video transmission , Data transmission
  5. Active Device Termination

Specification:

Fiber Connector

Connector A
Connector Type 12 or 24 -Fiber MPO /MTP
Ferrule of end-face UPC, APC
Housing Color MM (Beige/Aqua), SM (Yellow/Green)
Insertion Loss, Typical ≤ 0.10 dB
Insertion loss, max. ≤ 0.35 dB
Durability(500 Matings) < 0.2dB
Connector B
Connector Type LC/SC
Ferrule of end-face UPC, APC
Housing Color Blue, Beige, Aqua
Insertion Loss, Typical ≤ 0.10 dB
Insertion loss, max. ≤ 0.35 dB
Durability(1000 Matings) < 0.2dB

Fiber Cable

Fiber Type OS2, OM1, OM2, OM3, OM4
Fiber Count 12, 24 cores
Outer diameter 12cores: 4.5±0.2mm ; 24cores:5.4±0.2mm
Outer jacket Colour OS2(Yellow),OM2(Orange),OM3(Aqua),OM4(Violet)
Outer jacket material LSZH,OFNP,OFNR
Tensile strength 500N
Operating Temperature -20 ~ +60°C
Storage Temperature -40 ~ +70°C

Packing:

One piece per PE bag with stick label (we could add customer's logo in the label.)

Shipping:

  1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
